| Tên thương hiệu: | AUO |
| Số mẫu: | B156HANAA.0 |
| MOQ: | 10pcs |
| giá bán: | negotiable |
| Chi tiết bao bì: | Đóng gói công nghiệp |
| Điều khoản thanh toán: | T/T, W, Western Union, Moneygram |

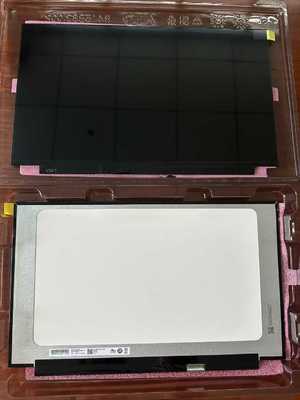

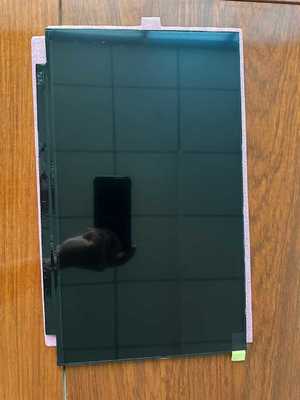

AUO 15.6inch lcd model B156HANAA.0 1920*1080Pixels PC LCD Module 30PIN 141PPI Desktop monitor
AU Optronics Corp. (hereafter called AUO) B156HANAA.0 is a 15.6 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C , and the maximal vibration level of 1.5G (14.7 m/s²). It's general features are summarized by einklcd in the following: WLED Backlight, With LED Driver, Reverse I/F, Matte , eDP1.2. Based on its features, Einklcd recommend that this model be applied to Laptop etc. According to the information stored in einklcd this model mass production on Q4, 2023, Now this model is in production. We inputted this model's specification on Jan 2 2024 for the first time, and the latest update on Jan 9 2024. If you want to embed B156HANAA.0 LCM in your future product, einklcd strongly recommend that you should contact with AUO or it's distributor to learn lateast production and specification detail. The B156HANAA.0 production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.
Brand: AUO
Model P/N: B156HANAA.0
Diagonal Size:15.6"
Panel Type: a-Si TFT-LCD, LCM
Resolution 1920(RGB)×1080, FHD 141PPI
Pixel Format: RGB Vertical Stripe
Active Area 344.16(W)×193.59(H) mm
Bezel Opening-
Outline Dim.350.66(H)×216.15(V) ×3.2(D) mm
Treatment Antiglare
Luminance 250 cd/m² (Typ.)
Contrast Ratio 800:1 (Typ.) (TM)
View Direction Symmetry
Response Time 25 (Typ.)(Tr+Td)
Viewing Angle 85/85/85/85 (Typ.)(CR≥10) Left / Right / Up / Down
Operating Mode AHVA, Normally Black, Transmissive
Support Color 262K 45% NTSCLight SourceWLED , 15K hours , With LED Driver
Form Style Slim (PCBA Flat, T≤3.2mm)
Designed For Laptop
Frame Rate 60Hz
120Hz (60HZ Input) : Embedded MEMC Circuit
120Hz+120Hz : 120Hz Panel+120Hz Backlight
240Hz (60HZ Input) : Embedded MEMC Circuit
Touch Panel: Without

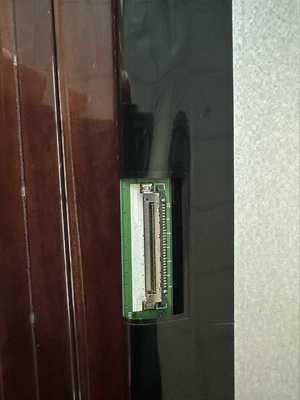

Interface Type: eDP (2 Lanes) , eDP1.2 , 30 pins Connector
Power Supply 3.3V (Typ.)
Environment Operating Temperature: 0 ~ 50 °C ;
Storage Temperature: -20 ~ 60 °C
|
|
