Chi tiết sản phẩm

Nhà > các sản phẩm >
Mô-đun LCD PC
>
BOE 12.7Inch tablet LCD Display Panel TV127XUM-LB4 1600x2176Pixels FHD 212PPI Pad lcd tablet lcd

BOE 12.7Inch tablet LCD Display Panel TV127XUM-LB4 1600x2176Pixels FHD 212PPI Pad lcd tablet lcd

Tên thương hiệu: BOE
Số mẫu: TV127xum-lb4
MOQ: 10pcs
giá bán: negotiable
Chi tiết bao bì: Đóng gói công nghiệp
Điều khoản thanh toán: T/T, W, Western Union, Moneygram
Thông tin chi tiết
Nguồn gốc:
Trung Quốc
Chứng nhận:
Rohs,CE,FCC
Chất lượng:
Bản gốc hoàn toàn mới
Bưu kiện:
Đóng gói công nghiệp ban đầu
Nghị quyết:
800*1280pixel
Phong cách:
39pin ips
Độ sáng:
400cd/m2
Màu sắc:
16,7m
Tỷ lệ tương phản:
880 :1
Cuộc sống làm việc:
10 nghìn giờ
Kích thước màn hình:
12,7 inch
Màn hình cảm ứng:
Cảm ứng trên di động, I²C
Khả năng cung cấp:
3000pc mỗi tuần
Mô tả sản phẩm

BOE 12.7Inch tablet LCD Display Panel TV127XUM-LB4 1600x2176Pixels FHD 212PPI Pad lcd tablet lcd



TV127XUM-LB4-D9P1 is a 12.7" diagonal a-Si TFT-LCD display panel product from BOE Technology Group Co., Ltd. (hereafter called BOE), with an integral WLED backlight system, without backlight driver, touchscreen In-Cell Touch. It features an operating temperature range of -10 ~ 60°C , a storage temperature range of -25 ~ 70°C . It's general features are summarized by Einklcd in the following: Portrait type, With Touch, WLED Backlight . Based on its features, Einklcd recommend that this model be applied to Pad & Tablet etc. Now this model is in production. We inputted this model's specification on Aug 15 2025 for the first time. If you want to embed the Assembly in your future product, Einklcd strongly recommend that you should contact with BOE or it's agent to learn lateast production and specification detail of TV127XUM-LB4-D9P1. The production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.





Brand BOE
Model P/N: TV127XUM-LB4-D9P1
Diagonal Size: 12.7"
Panel Type: a-Si TFT-LCD, Assembly
Resolution1600(RGB)×2176 212PPI
Pixel Format :RGB Vertical Stripe
Active Area191.04(W)×259.814(H) mm
Bezel Opening-
Luminance
View Direction
Viewing Angle:
85/85/85/85 (Typ.)(CR≥10) Left / Right / Up / Dow
Support Color: 16.7M
Weight:
Frame Rate :60Hz
-Symmetry
120Hz (60HZ Input) : Embedded MEMC Circuit
120Hz+120Hz : 120Hz Panel+120Hz Backlight
240Hz (60HZ Input) : Embedded MEMC Circuit
Contrast Ratio:880:1 (Typ.) (TM)
Response Time: 30 (Typ.)(Tr+Td)
Operating Mode:
Light Source: WLED , 10K hours , W/O Driver
Designed For Pad & Tablet
Touch Panel:In-Cell Touch, I²C

Interface Type MIPI (2 ch, 4 data lanes) Connector
Environment Operating Temperature: -10 ~ 60 °C ;
Storage Temperature: -25 ~ 70 °C

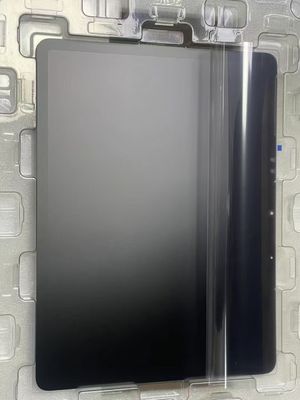

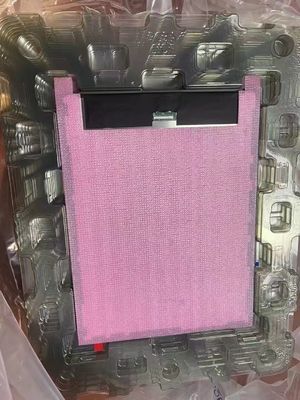

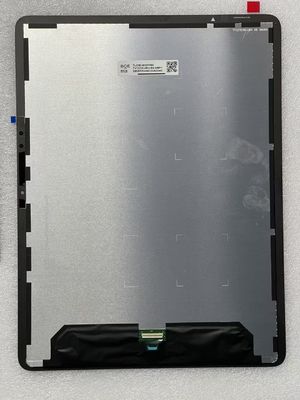

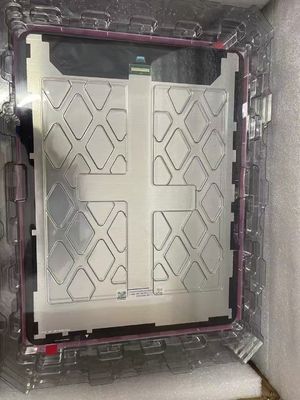

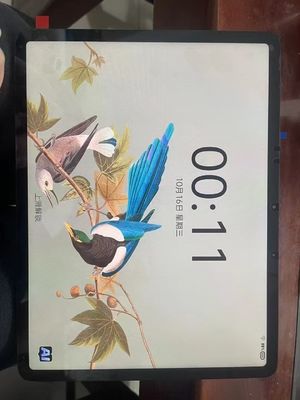

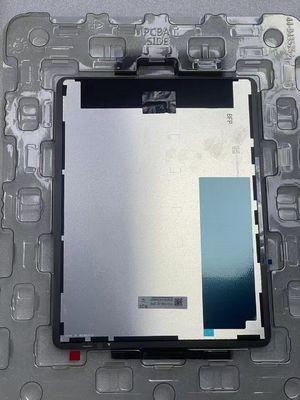

BOE 12.7Inch tablet LCD Display Panel TV127XUM-LB4  1600x2176Pixels FHD 212PPI Pad lcd tablet lcd 0
BOE 12.7Inch tablet LCD Display Panel TV127XUM-LB4  1600x2176Pixels FHD 212PPI Pad lcd tablet lcd 1
