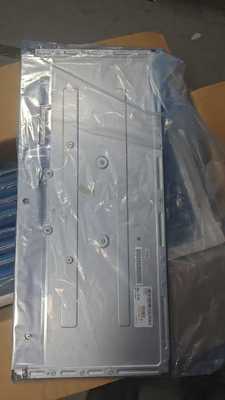

LG 29Inch Desktop LCD Display Panel LM290WW1-SSA1 2560x1080Pixels FHD 96PPI tablet PC lcd 92pin

LG 29Inch Desktop LCD Display Panel LM290WW1-SSA1 2560x1080Pixels FHD 96PPI tablet PC lcd 92pin

Tên thương hiệu: LG
Số mẫu: LM290WW1-SSA1
MOQ: 10pcs
giá bán: negotiable
Chi tiết bao bì: Đóng gói công nghiệp
Điều khoản thanh toán: T/T, W, Western Union, Moneygram
Thông tin chi tiết
Nguồn gốc:
TRUNG QUỐC
Chứng nhận:
Rohs,CE,FCC
Chất lượng:
Bản gốc hoàn toàn mới
Bưu kiện:
Đóng gói công nghiệp ban đầu
Nghị quyết:
2560*1080pixel
Phong cách:
IPS 92PIN
Độ sáng:
300cd/m2
Màu sắc:
16,7m
Tỷ lệ tương phản:
1000 :1
Cuộc sống làm việc:
30k giờ
Kích thước màn hình:
29 inch
Màn hình cảm ứng:
Không có
Khả năng cung cấp:
3000pc mỗi tuần
Mô tả sản phẩm

LG 29Inch Desktop LCD Display Panel LM290WW1-SSA1 2560x1080Pixels FHD 96PPI tablet PC lcd 92pin



LG Display Co., Ltd. (hereafter called LG Display) LM290WW1-SSA1 (Alias: LM290WW1 (SS)(A1)) is a 29.0 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C . It's general features are summarized by Einklcd in the following: sRGB, 3-side boderless, WLED Backlight, Reverse I/F, Matte , 3-side Borderless, for LG monitor 29UM65. Based on its features, Einklcd recommend that this model be applied to Desktop Monitor etc. According to the information stored in Einklcd this model mass production on Q4, 2012, Now this model is discontinued. We inputted this model's specification on Dec 17 2012 for the first time, and the latest update on Dec 10 2024. If you want to embed LM290WW1-SSA1 LCM in your future product, Einklcd strongly recommend that you should contact with LG Display or it's distributor to learn lateast production and specification detail. The LM290WW1-SSA1 production status marked on Einklcd.com is for reference only and should not be used as the basis for the user's decision making.





Brand LG
Display Model:P/NLM290WW1-SSA1
Diagonal Size: 29.0"
Panel Type: a-Si TFT-LCD, LCM
Resolution 2560(RGB)×1080, CSHD 96PPI
Pixel Format: RGB Vertical Stripe
Active Area 672.768(W)×283.824(H) mm
Bezel Opening-
Outline Size: 693.6(W)×308.9(H) ×17.5(D) mm
Brightness: 300 cd/m² (Typ.)
Viewing Angle: 89/89/89/89 (Typ.)(CR≥10) Left / Right / Up / Down
Best View on Symmetry
Display Colors:16.7M 100% sRGB
Frequency: 75Hz
120Hz (60HZ Input) : Embedded MEMC Circuit
120Hz+120Hz : 120Hz Panel+120Hz Backlight
240Hz (60HZ Input) : Embedded MEMC Circuit
Weight: 3.40/3.57Kgs (Typ./Max.)

Surface : Antiglare, Hard coating (3H)
Contrast Ratio:1000:1 (Typ.) (TM)
Display Mode: IPS, Normally Black, Transmissive
Response Time :14 (Typ.)(G to G)
Lamp Type: 17S4P WLED , 30K hours , Without Driver
Touch Screen:Without
Application: Desktop Monitor
Signal Interface LVDS (4 ch, 8-bit) , 92 pins Connector
Input Voltage 12.0V (Typ.)
Environment Operating Temp.: 0 ~ 50 °C ;
Storage Temp.: -20 ~ 60 °C

LG 29Inch Desktop  LCD Display Panel LM290WW1-SSA1 2560x1080Pixels FHD 96PPI  tablet PC lcd 92pin 0
