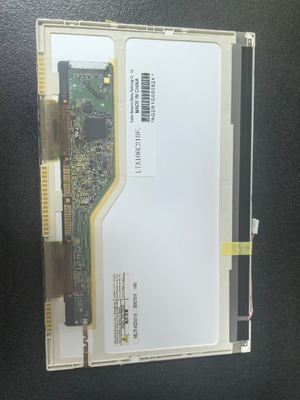

TOSHIBA 10.6Inch Industrial LCD Display Panel LTA106C210F 1280*768Pixels 141PPI 20P 230cd/m2

TOSHIBA 10.6Inch Industrial LCD Display Panel LTA106C210F 1280*768Pixels 141PPI 20P 230cd/m2

Tên thương hiệu: TOSHIBA
Số mẫu: LTA106C210F
MOQ: 10pcs
giá bán: negotiable
Chi tiết bao bì: Đóng gói công nghiệp
Điều khoản thanh toán: T/T, W, Western Union, Moneygram
Thông tin chi tiết
Nguồn gốc:
TRUNG QUỐC
Chứng nhận:
Rohs,CE,FCC
Chất lượng:
Bản gốc hoàn toàn mới
Bưu kiện:
Đóng gói công nghiệp ban đầu
Nghị quyết:
1280*768pixel
Phong cách:
IPS 20PIN
Độ sáng:
230CD/M2
Màu sắc:
262K
Tỷ lệ tương phản:
300 :1
Cuộc sống làm việc:
20k giờ
Kích thước màn hình:
10.6inch
Khả năng cung cấp:
3000pc mỗi tuần
Mô tả sản phẩm

TOSHIBA 10.6Inch Industrial LCD Display Panel LTA106C210F 1280*768Pixels 141PPI 20P 230cd/m2



LTA106C210F is a 10.6" diagonal LTPS TFT-LCD display panel product from Toshiba Mobile Display Co., Ltd. (hereafter called Toshiba Mobile Display), with an integral CCFL backlight system, without backlight driver, without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C . It's general features are summarized by einklcd in the following: Lamp Repaceable, Matte . Based on its features, einklcd suppliers of this model on einklcd. We inputted this model's specification on Jun 30 2012 for the first time, and the latest update on Feb 12 2020. If you want to embed the LCM in your future product, einklcd strongly recommend that you should contact with Toshiba Mobile Display or it's agent to learn lateast production and specification detail of LTA106C210F. The production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.





Brand:Toshiba
Mobile DisplayModel : P/NLTA106C210F
Diagonal Size 10.6"
Panel Type: LTPS TFT-LCD, LCM
Resolution 1280(RGB)×768, WXGA 141PPI Pixel
Format: RGB Vertical Stripe
Active Area 230.4(W)×138.24(H) mm
Bezel Opening 235.2(W)×143.1(H) mm
Outline(mm) :244(W)×155(H)×6.4(D)
Luminance:230 (Typ.)(cd/m²)
Viewing Angle:50/50/40/60 (Typ.)(CR≥10) Left / Right / Up / Down
Good View at 6 o'clock
Color Depth 262K
Mass : 285g (Typ.)
Refresh Rate
Treatment
Contrast Ratio:300 : 1 (Typ.) (TM)
Work Mode: Antiglare, Hard coating (3H) TN, Normally White, Transmissive [Panelook copyright, copy is strictly prohibited]
IPS Family: AAS, ADS, AHVA, FFS, HFS, HIS, IPS, New Mode2, PLS, SFT, Vistarich
VA Family: ASV, FSA, HVA, MVA, PVA, SVA, UV²A, VA
Response :8/22 (Typ.)(Tr/Td) ms
Backlight:1 pcs CCFL , 20K hours , No Driver
Used for :Industrial
Touchscreen:Without
Signal Type LVDS (1 ch, 6-bit) , 20 pins Connector
Voltage Supply 3.3V (Typ.)
Max. Ratings Storage Temp.: -20 ~ 60 °C
Operating Temp.: 0 ~ 50 °C

TOSHIBA 10.6Inch  Industrial LCD Display Panel LTA106C210F 1280*768Pixels 141PPI 20P 230cd/m2 0
TOSHIBA 10.6Inch  Industrial LCD Display Panel LTA106C210F 1280*768Pixels 141PPI 20P 230cd/m2 1
