BOE GV215FHM-N10 21.5 Inch Industrial LCD Panel with 1920x1080 Pixels 450cd/m2 Brightness and 30pin Connector for Digital Signage

BOE GV215FHM-N10 21.5 Inch Industrial LCD Panel with 1920x1080 Pixels 450cd/m2 Brightness and 30pin Connector for Digital Signage

Tên thương hiệu: BOE
Số mẫu: GV215FHM-10
MOQ: 10 CÁI
giá bán: negotiable
Điều khoản thanh toán: T/T, W, Western Union, MoneyGram
Khả năng cung cấp: 3000pc mỗi tuần
Thông tin chi tiết
Nguồn gốc:
NHẬT BẢN
Chứng nhận:
Rohs,CE,FCC
Chất lượng:
Bản gốc hoàn toàn mới
Bưu kiện:
Bao bì công nghiệp gốc
Nghị quyết:
1920*1080Pixel
Phong cách:
IPS 30PIN
Độ sáng:
450cd/m2
Màu sắc:
16,7 triệu
Tỷ lệ tương phản:
900 :1
cuộc sống lao động:
50 nghìn giờ
Kiểu:
Lcm
Kích cỡ:
21,5 inch
Loại đèn:
Lcm
Điện áp:
5.0v
người đánh số kiểu mẫu:
GV215FHM-N10
chi tiết đóng gói:
Đóng gói công nghiệp
Làm nổi bật:

1920x1080 Pixels Industrial LCD Panel

,

450cd/m2 Brightness TFT-LCD Display

,

30pin Connector LCM

Mô tả sản phẩm
BOE GV215FHM-N10 21.5-Inch Industrial LCD Panel
GV215FHM-N10 is a 21.5-inch diagonal a-Si TFT-LCD display panel from BOE Technology Group Co., Ltd., featuring an integrated WLED backlight system. This industrial-grade panel is designed for demanding applications with an operating temperature range of -20°C to 70°C and maximal vibration level of 1.05G (10.3 m/s²).

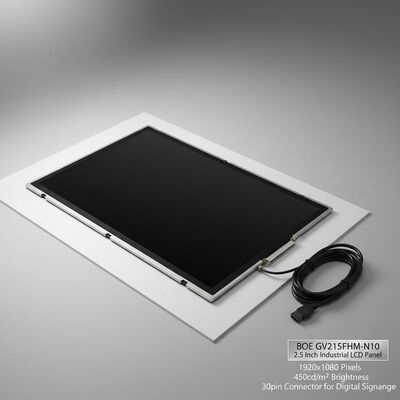

BOE GV215FHM-N10 21.5 Inch Industrial LCD Panel with 1920x1080 Pixels 450cd/m2 Brightness and 30pin Connector for Digital Signage 0
Key Features
  • 21.5-inch diagonal display with 1920*1080 FHD resolution
  • High brightness: 450 cd/m² typical
  • Wide viewing angle: 89/89/89/89 (CR≥10)
  • WLED backlight with 50,000 hours lifespan
  • Industrial operating temperature: -20°C to 70°C
  • Landscape/Portrait orientation support
  • Matte surface with anti-glare treatment
  • High temperature nematic liquid crystal (105°C)
Technical Specifications
BrandBOE
Model P/NGV215FHM-N10
Diagonal Size21.5"
Panel Typea-Si TFT-LCD, LCM
Resolution1920(RGB)*1080, FHD (102 PPI)
Active Area476.64(W)*268.11(H) mm
Outline Dimensions485.6(W)*292.2(H)*11.2(D) mm
Luminance450 cd/m² (Typical)
Contrast Ratio1000:1 (Typical)
Viewing Angle89/89/89/89 (CR≥10)
Response Time14 ms (G to G, Typical)
Color Depth16.7M colors
Refresh Rate60Hz
Signal TypeLVDS (2 ch, 8-bit), 30-pin connector
Voltage Supply5.0V (Typical)
Mass1.93 kg (Typical)
TouchscreenWithout
Environmental Specifications
Operating Temperature-20°C to 70°C
Storage Temperature-30°C to 80°C
Surface TreatmentAntiglare (Haze 25%), Hard coating (3H)
Application Areas
This industrial LCD panel is recommended for Industrial applications, Digital Signage, and other demanding environments requiring reliable performance across wide temperature ranges.
BOE GV215FHM-N10 21.5 Inch Industrial LCD Panel with 1920x1080 Pixels 450cd/m2 Brightness and 30pin Connector for Digital Signage 1 BOE GV215FHM-N10 21.5 Inch Industrial LCD Panel with 1920x1080 Pixels 450cd/m2 Brightness and 30pin Connector for Digital Signage 2
Production Status Note: This model entered mass production in Q4 2022 and is currently in production. For the latest production status and specification details, we strongly recommend contacting BOE or their authorized agents before integrating this LCM into your products.
