BOE 16.0 Inch LCD Panel NE160WUM-NX1 with 300CD/M2 Brightness and 40pin Connector for PC LCD Display

BOE 16.0 Inch LCD Panel NE160WUM-NX1 with 300CD/M2 Brightness and 40pin Connector for PC LCD Display

Tên thương hiệu: BOE
Số mẫu: TV101WXM-LL0
MOQ: 10 CÁI
giá bán: negotiable
Điều khoản thanh toán: T/T, W, Western Union, MoneyGram
Khả năng cung cấp: 3000pc mỗi tuần
Thông tin chi tiết
Nguồn gốc:
Trung Quốc
Chứng nhận:
Rohs,CE,FCC
Chất lượng:
Bản gốc hoàn toàn mới
Bưu kiện:
Bao bì công nghiệp gốc
chất sáng:
300CCD/M2
Đầu nối:
30P
Màu sắc:
16,7 triệu
Tỷ lệ tương phản:
1200:1
cuộc sống lao động:
15 nghìn giờ
Bảng điều khiển cảm ứng:
không có
chi tiết đóng gói:
Đóng gói công nghiệp
Làm nổi bật:

300CD/M2 Brightness LCD Panel

,

40pin Connector TFT-LCD Display

,

16.0 Inch Diagonal PC LCD Module

Mô tả sản phẩm

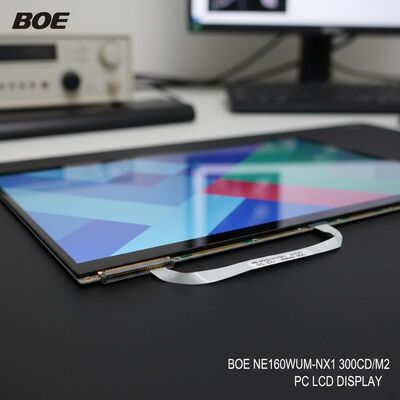

BOE 15.6-Inch LCD Panel NE160WUM-NX1
High-performance 16.0-inch diagonal Oxide TFT-LCD display panel with 300 cd/m² brightness and 40-pin eDP connector, designed for PC LCD displays and gaming applications.
Key Features
  • 120Hz refresh rate for smooth motion
  • 1920*1200 WUXGA resolution (141 PPI)
  • 100% sRGB color gamut with 16.7 million colors
  • AMD FreeSync technology support
  • 1200:1 contrast ratio
  • Antiglare surface with hard coating (3H)
  • eDP 1.4 interface with 40-pin connector
  • WLED backlight with 15,000 hours lifespan
Technical Specifications
BrandBOE
Model NumberNE160WUM-NX1 (BOE0B2B)
Panel TypeOxide TFT-LCD, LCM
Diagonal Size16.0 inches
Resolution1920(RGB)*1200 (WUXGA)
Active Area344.68 * 215.42 mm
Brightness300 cd/m² (Typical)
Contrast Ratio1200:1 (Typical)
Viewing Angle89/89/89/89 (CR≥10)
Response Time25ms (Typical, Tr+Td)
Refresh Rate120Hz
Signal InterfaceeDP (4 Lanes), eDP1.4, 40-pin connector
Input Voltage3.3V (Typical)
Operating Temperature0°C to 50°C
Storage Temperature-20°C to 60°C
Vibration Resistance1.5G (14.7 m/s²)
Applications
Ideal for laptops, gaming displays, and other PC LCD display applications requiring high refresh rates and excellent color reproduction.
Production Note: This model entered mass production in Q2 2022 and is currently in production. For the latest production status and specification details, we recommend contacting BOE or their authorized agents directly.
