AUO 15.6 Inch PC LCD Module B156ZAN05.1 with 3840x2160 Pixels 40PIN Connector and 400cd/m2 Brightness for High Resolution Display

AUO 15.6 Inch PC LCD Module B156ZAN05.1 with 3840x2160 Pixels 40PIN Connector and 400cd/m2 Brightness for High Resolution Display

Tên thương hiệu: auo
Số mẫu: B156Hanac.H
MOQ: 10 CÁI
giá bán: negotiable
Điều khoản thanh toán: T/T, W, Western Union, MoneyGram
Khả năng cung cấp: 3000pc mỗi tuần
Thông tin chi tiết
Nguồn gốc:
Trung Quốc
Chứng nhận:
Rohs,CE,FCC
Chất lượng:
Bản gốc hoàn toàn mới
Bưu kiện:
Bao bì công nghiệp gốc
Vật liệu:
Thủy tinh
Độ sáng:
400ccd/m2
Nghị quyết:
3840*2160pixel
Tỷ lệ tương phản:
1000:1
Màu sắc:
16,7 triệu
cuộc sống lao động:
30 nghìn giờ
Đầu nối:
40p
Bảng điều khiển cảm ứng:
không có
chi tiết đóng gói:
Đóng gói công nghiệp
Làm nổi bật:

3840x2160 Pixels PC LCD Module

,

40PIN Connector LCD Display Panel

,

400cd/m2 Brightness TFT-LCD Display

Mô tả sản phẩm

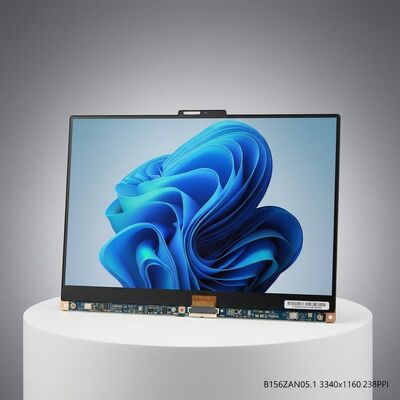

AUO 15.6 Inch PC LCD Module B156ZAN05.1
High-resolution 15.6-inch LTPS TFT-LCD display module featuring 3840*2160 UHD resolution, 283 PPI pixel density, and 40-pin eDP connector for premium visual performance.
AUO 15.6 Inch PC LCD Module B156ZAN05.1 with 3840x2160 Pixels 40PIN Connector and 400cd/m2 Brightness for High Resolution Display 0
The B156ZAN05.1 is a 15.6-inch diagonal LTPS TFT-LCD display panel from AU Optronics Corp., featuring an integrated Mini LED backlight system with LED driver. This high-performance display module operates within 0~50°C temperature range and offers exceptional visual quality for demanding applications.
Key Features
  • 120Hz refresh rate for smooth motion
  • Mini LED backlight technology
  • Integrated LED driver
  • 100% Adobe RGB color gamut
  • eDP 1.4 interface with 40-pin connector
  • Matte anti-glare surface treatment
Technical Specifications
Brand AUO
Model P/N B156ZAN05.1
Diagonal Size 15.6 inches
Panel Type LTPS TFT-LCD, LCM
Resolution 3840*2160 UHD (283 PPI)
Active Area 344.218 * 193.622 mm
Luminance 400 cd/m² (Typical)
Contrast Ratio 1000:1 (Typical)
Viewing Angle 85/85/85/85 (CR≥10)
Response Time 8.3 ms (G to G, Typical)
Color Depth 16.7 million colors
Backlight Mini LED, 15K hours, With LED Driver
Refresh Rate 120Hz
Signal Type eDP (4 Lanes), eDP1.4, 40-pin Connector
Operating Voltage 3.3V (Typical)
Operating Temperature 0 ~ 50°C
Storage Temperature -20 ~ 60°C
Important Notice: This model entered mass production in Q3 2019 and is currently discontinued. For integration into future products, we strongly recommend contacting AUO or their authorized agents for the latest production status and specification details. The information provided is for reference only and should not be used as the sole basis for decision-making.
Recommended applications include high-performance laptops and other devices requiring premium display quality with advanced Mini LED backlight technology.
