BOE 37Inch Stretched LCD Display with 700cd/m² Brightness 1920*540 Resolution and 51pin Connector

BOE 37Inch Stretched LCD Display with 700cd/m² Brightness 1920*540 Resolution and 51pin Connector

Tên thương hiệu: BOE
Số mẫu: DV370FBM-N10
MOQ: 10 cái
giá bán: negotiable
Điều khoản thanh toán: T/T, W, Western Union, MoneyGram
Khả năng cung cấp: 3000pc mỗi tuần
Thông tin chi tiết
Nguồn gốc:
Trung Quốc
Chứng nhận:
Rohs,CE,FCC
Chất lượng:
Bản gốc hoàn toàn mới
Bưu kiện:
Bao bì công nghiệp gốc
Vật liệu:
kính oled
Màu sắc:
16,7 triệu màu
Người mẫu:
WLED
Phong cách:
màn hình rộng độ phân giải cao 1920*540pixel
Độ sáng:
700cd
Đầu nối:
51pin
Tỷ lệ tương phản:
1000:1
cuộc sống lao động:
50 nghìn giờ
Giao diện tín hiệu:
LVDS
Điện áp đầu vào:
12V
chi tiết đóng gói:
Đóng gói công nghiệp
Mô tả sản phẩm

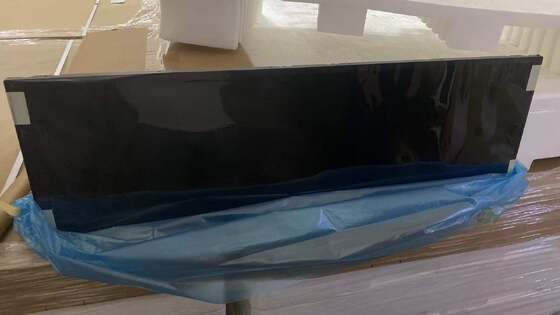

BOE 37-Inch Stretched LCD Display DV370FBM-N10
The DV370FBM-N10 is a 37-inch diagonal stretched bar LCD display panel from BOE Technology Group Co., Ltd., featuring 700 cd/m² outdoor high brightness, 1920*540 resolution, and 51-pin connector. This a-Si TFT-LCD panel includes an integral WLED backlight system and is designed for demanding outdoor and stretched display applications.
Key Features
  • 37-inch stretched bar display format (>3:1 aspect ratio)
  • 700 cd/m² high brightness for outdoor visibility
  • 1920*540 pixel resolution
  • WLED backlight with 50,000-hour lifespan
  • Wide viewing angles: 89/89/89/89 (CR≥10)
  • 1000:1 contrast ratio
  • ADS technology with normally black display mode
  • LVDS interface with 51-pin connector
  • Antiglare surface with hard coating (3H)
Technical Specifications
Manufacturer BOE
Model DV370FBM-N10
Display Size 37 inch (Native bar)
Resolution 1920(RGB)*540
Brightness 700 cd/m² (Typical)
Contrast Ratio 1000:1 (Typical)
Viewing Angle 89/89/89/89 (Typical, CR≥10)
Response Time 14 ms (Typical, G to G)
Display Colors 16.7M, 99% sRGB
Interface LVDS (2 ch, 8-bit), 51 pins Connector
Power Consumption 25.8W (Typical)
Input Voltage 12.0V (Typical)
Operating Temperature 0 ~ 50 °C
Storage Temperature -20 ~ 60 °C
Panel Weight 5.10 kg (Maximum)
Applications
  • Digital Signage
  • Outdoor High Brightness Displays
  • Stretched Bar LCD Applications
  • Commercial Display Systems
Note: Production status information is for reference only. For the latest production and specification details, please contact BOE or their authorized agents before integrating this model into your products.
